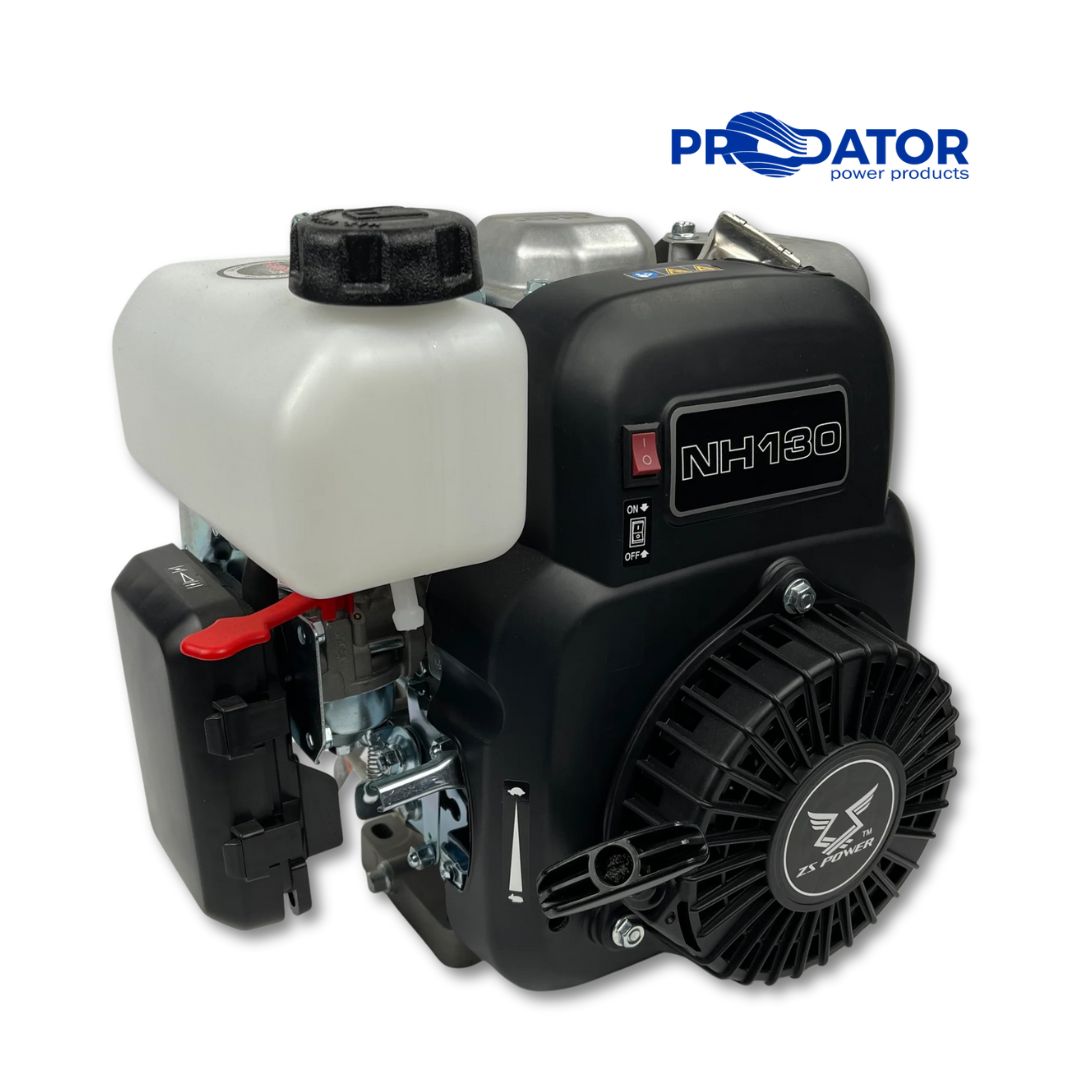

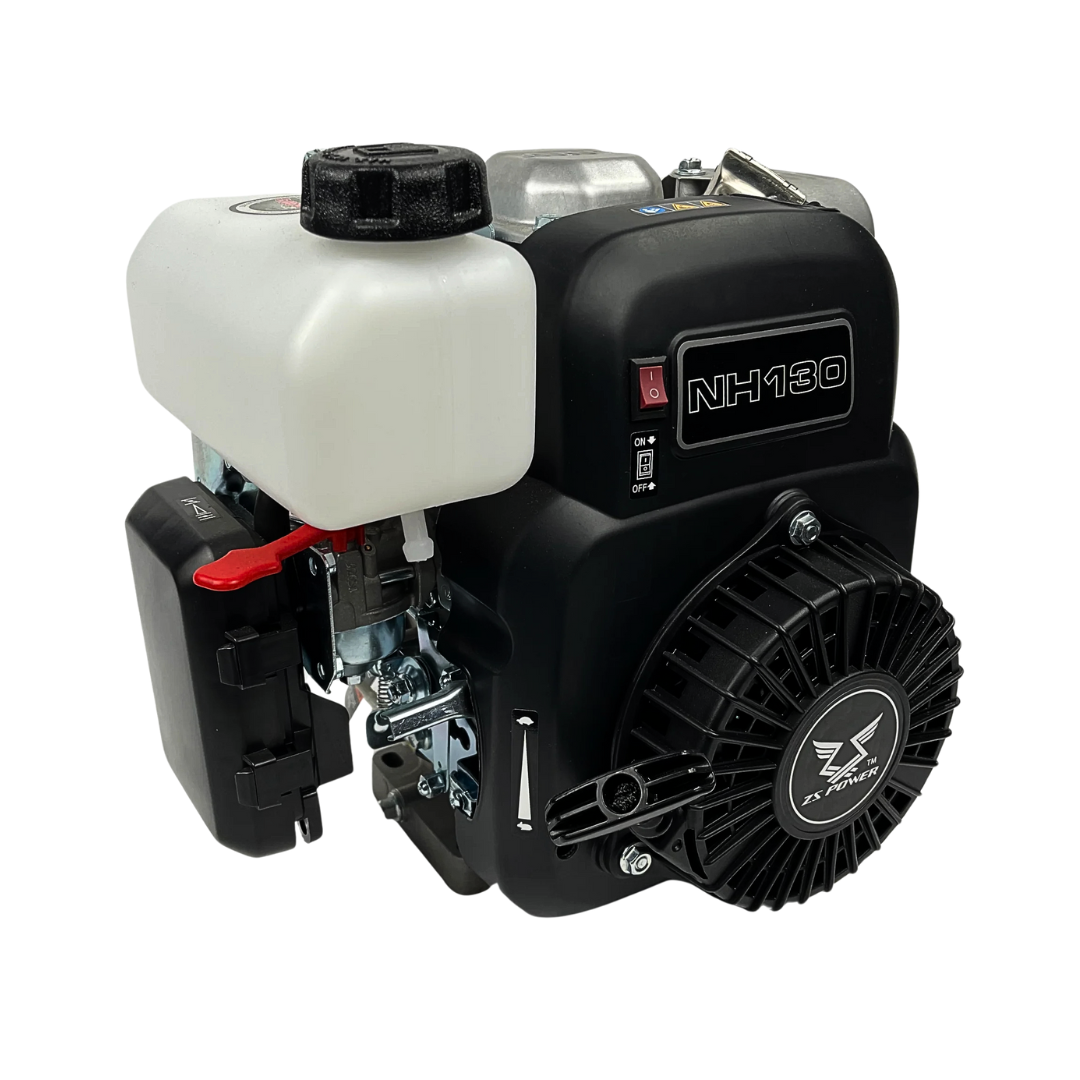

Predator 4hp Petrol Engine Pull Start NH130
Predator 4hp Petrol Engine Pull Start NH130
Couldn't load pickup availability
Petrol engine 4HP. This rugged little 4hp petrol engine is great for cylinder mowers, lawn edgers and small plate compactors but with better performance that Honda GX120.
Quality and durability are nothing without support. We carry spare parts and give an industry leading 2 year warranty on design, assembly and materials to ensure you get simply the very best support, whenever you need it.
NH130 will fit a wide range of applications where you need a small petrol engine and need some extra performance. NH130 engines are available in a wide range PTO shaft designs. Please see below specs.
*Replaces GX100 engine, Briggs & Stratton 3.5HP engine, COX POWER 5HP engine (COX Power CPH150-2 engine / COX Power CPH150-4 engine)
*Product images are for illustration purposes only.
Specifications:
| Model | NH130 |
| Bore & Stroke (mm) | 61×45 |
| Displacement (cc) | 132 |
| Rated Power (hp) | 4 |
| Measured PTO Power (kw) | 2.2 |
| Max Output Speed (rpm) | 4000 |
| Max Torque (N.M) | 6.5 |
| Idle Speed (rpm) | 1440 |
| PTO Shaft Height (mm) | 106 |
| PTO Shaft Size (Inch) | 5/8″ or 3/4″ |
| Starting System | Recoil |
| Engine Oil Capacity (L) | 0.5 |
| Recommended Oil | SAE 10w-30 |
| Fuel Tank Capacity (L) | 1.2 |
| Fuel Consumption (G/kw/hr) | 382 (max power) |
| Packing Dimensions (cm) LxWxH | 37x36x39 |
| Net Weight (Kg) | 10 |
| Gross Weight (kg) | 14 |
| Emissions | EPA |
Dimensions
Dimensions
480mm h x 50mm w
